My Virtual Lab Setup
This lab simulates a professional enterprise network for testing and learning:
- Active Directory – Domain Controller (jeff.local)

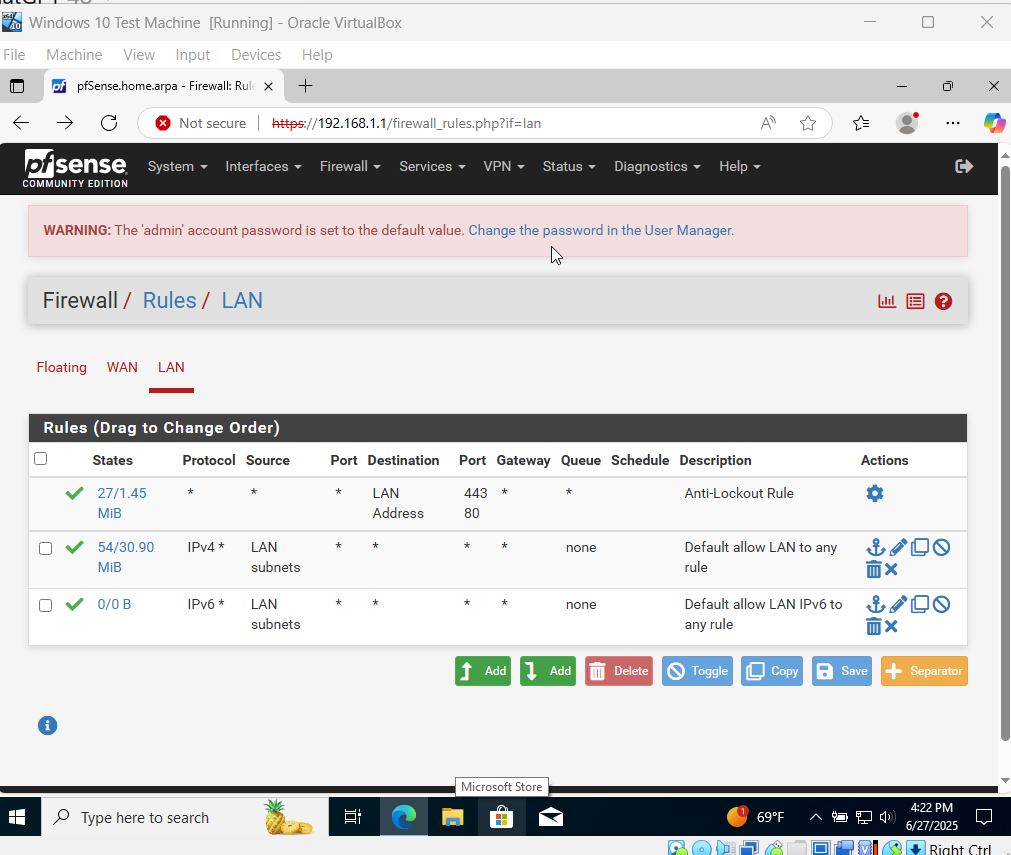

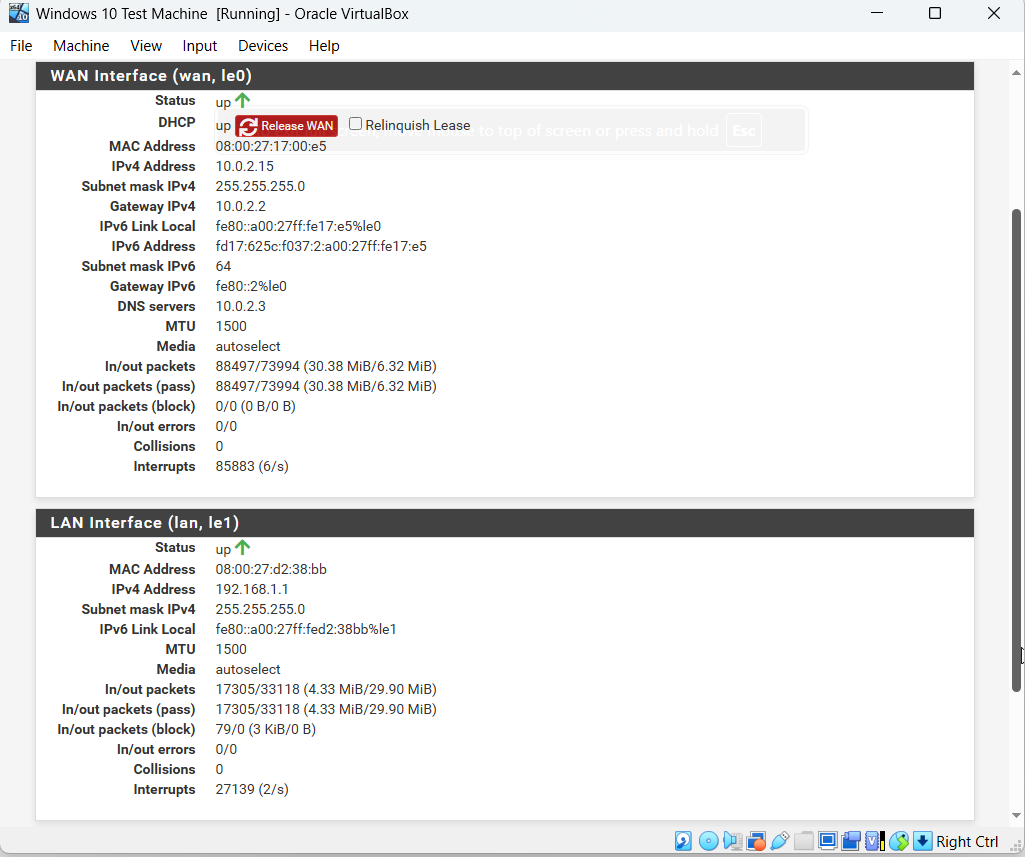

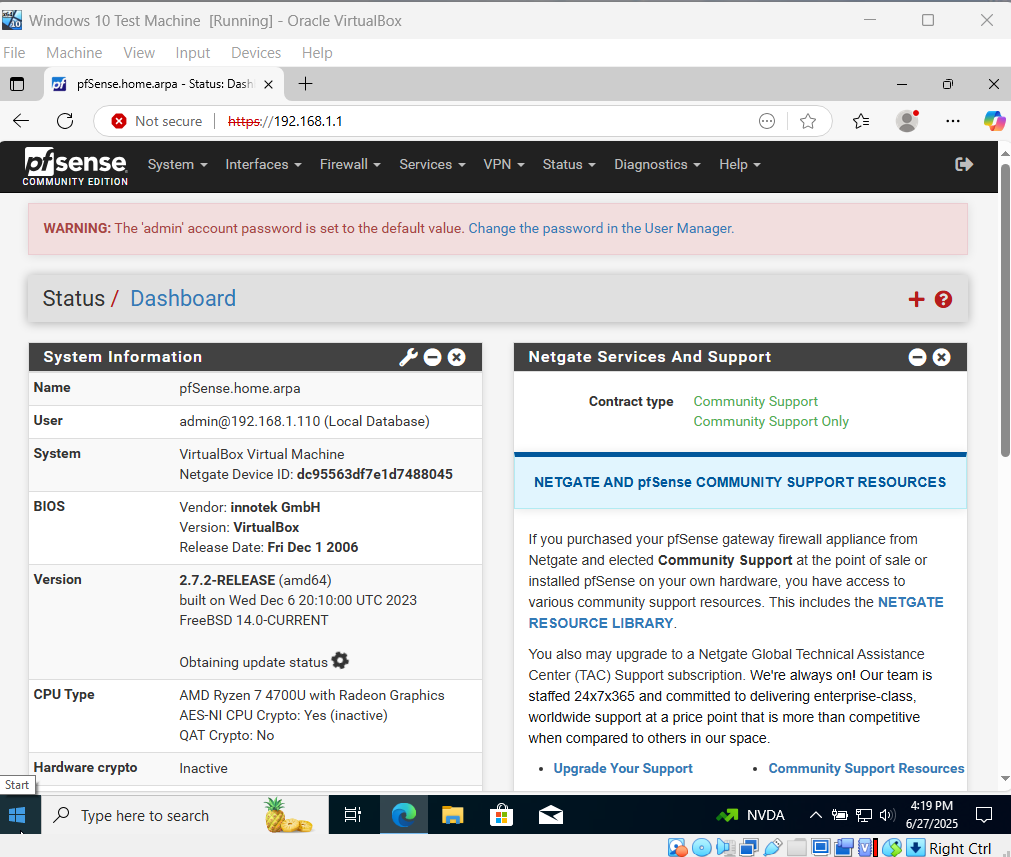

- pfSense – Virtual firewall/router

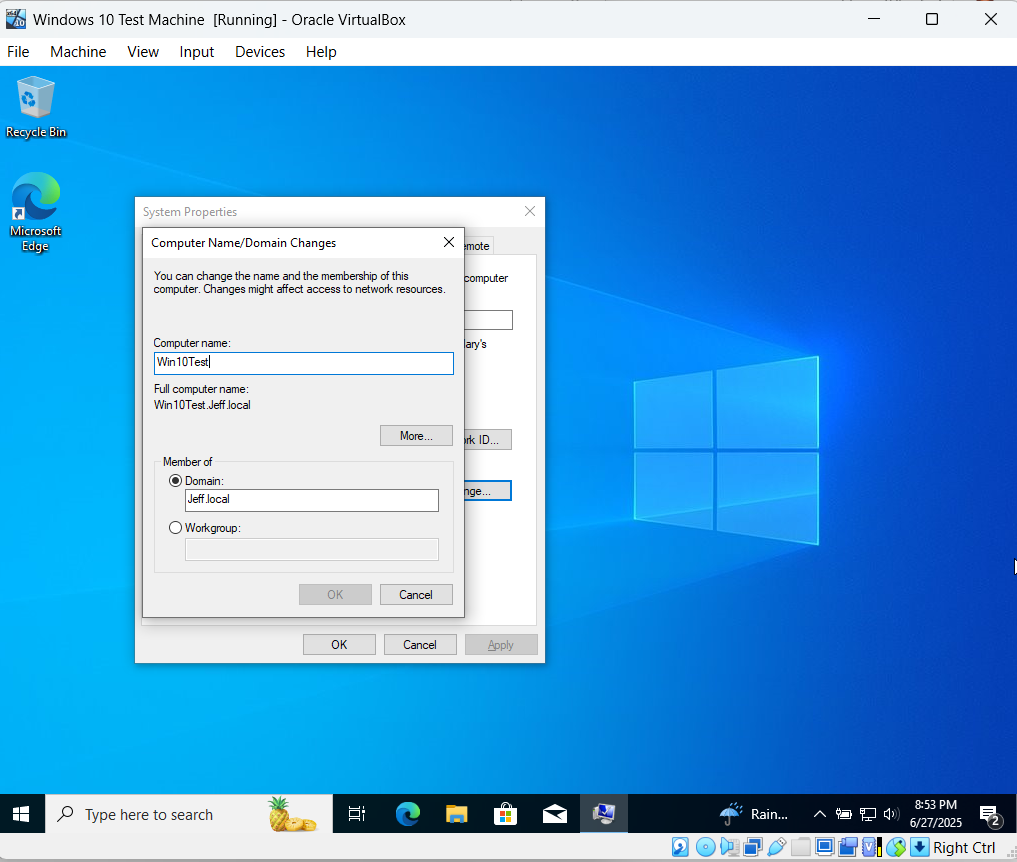

- Windows Client – Joined to AD domain

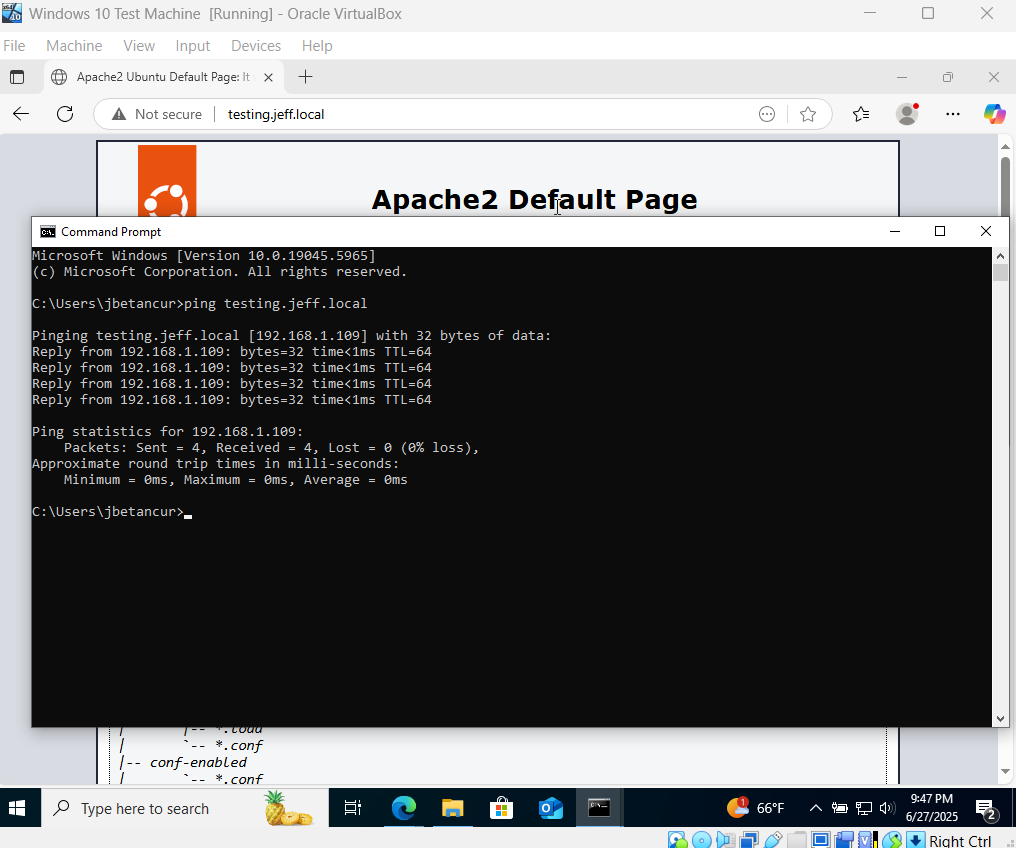

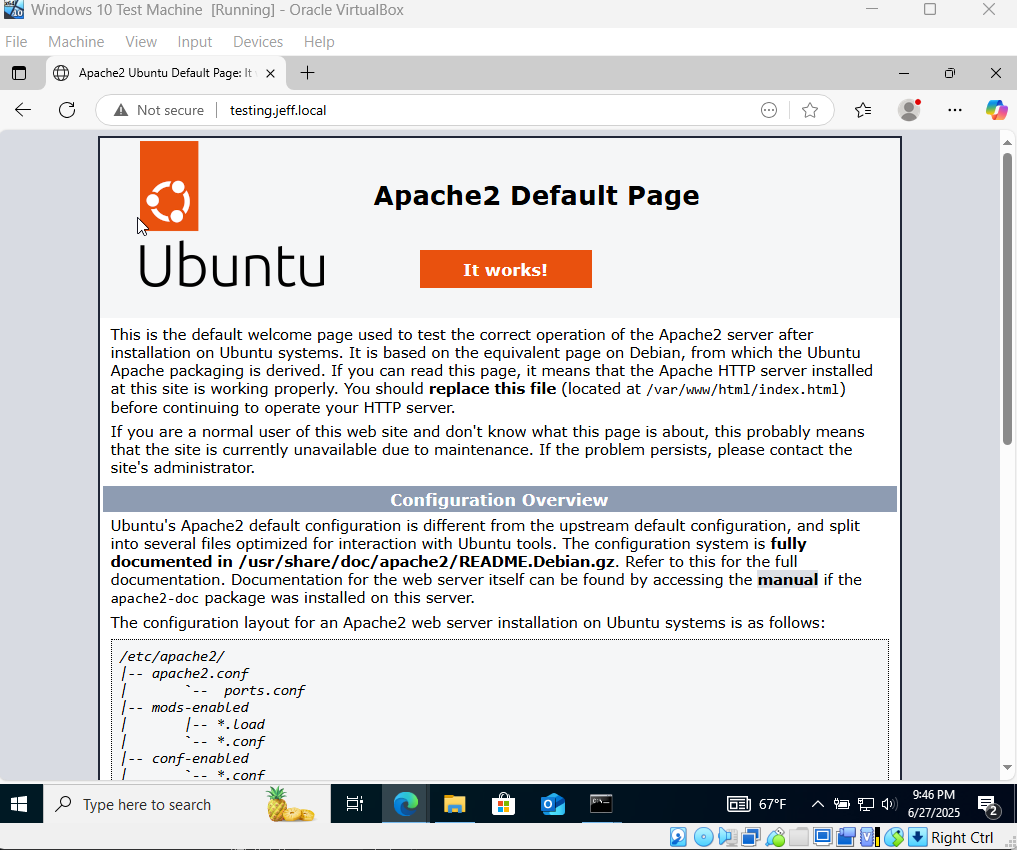

- Ubuntu Apache Server – Web server with HTML content

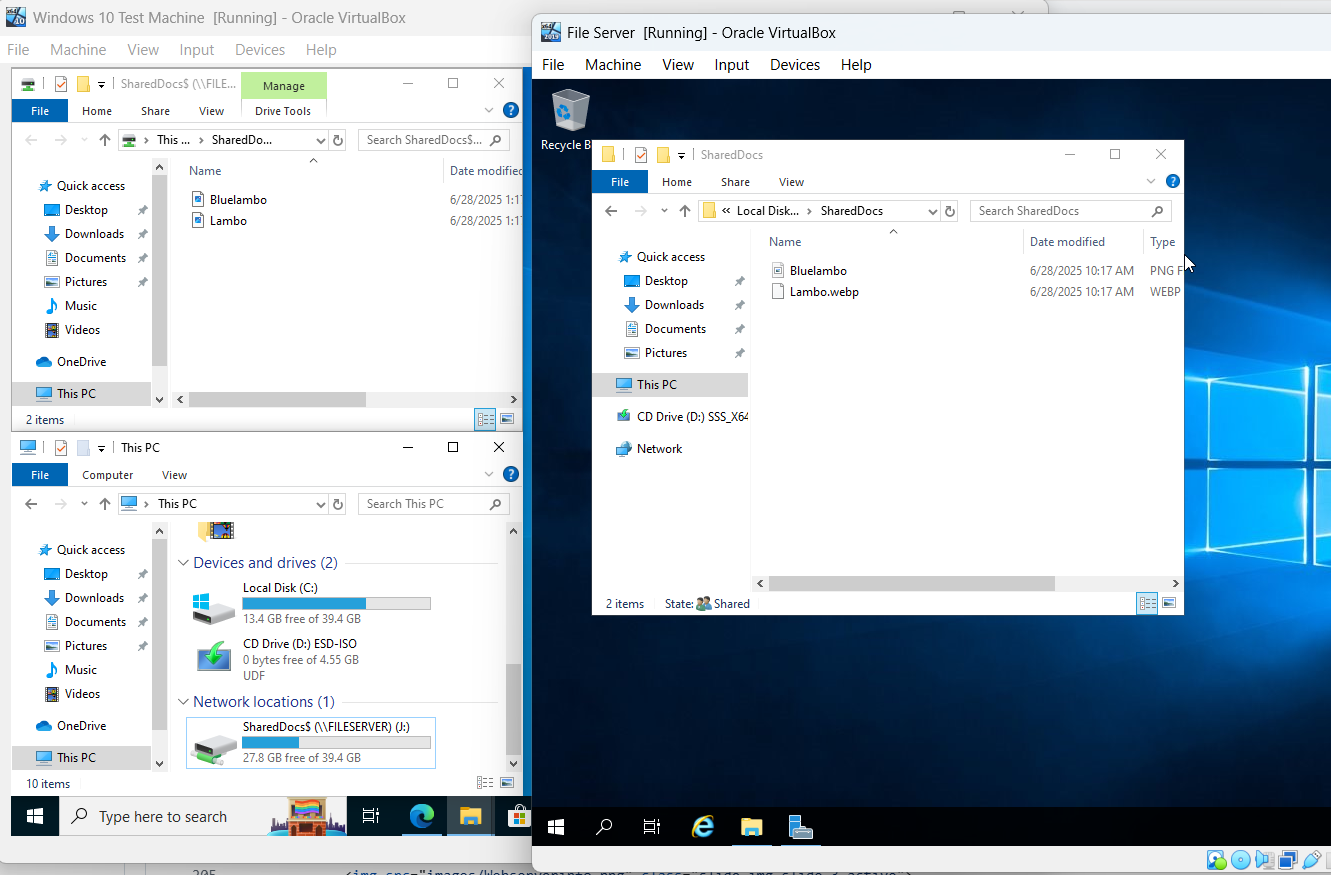

- File Server – Shares via SMB
💻 Project Tabs
Windows Environment Lab

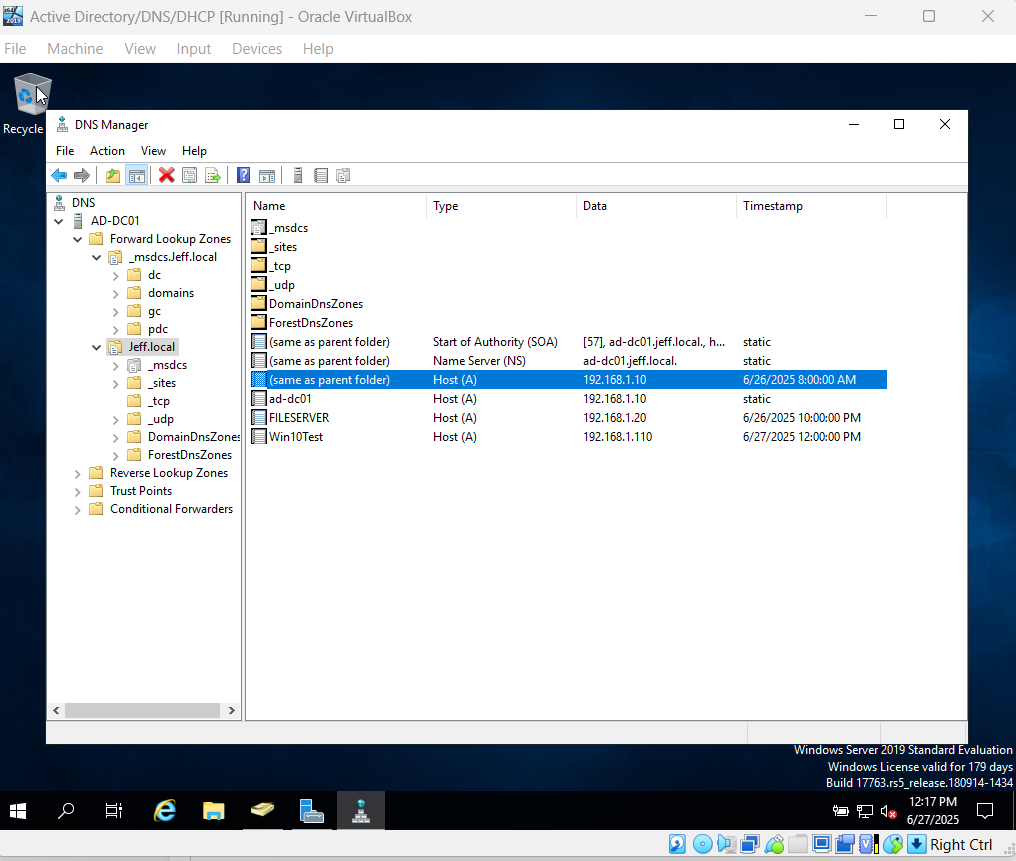

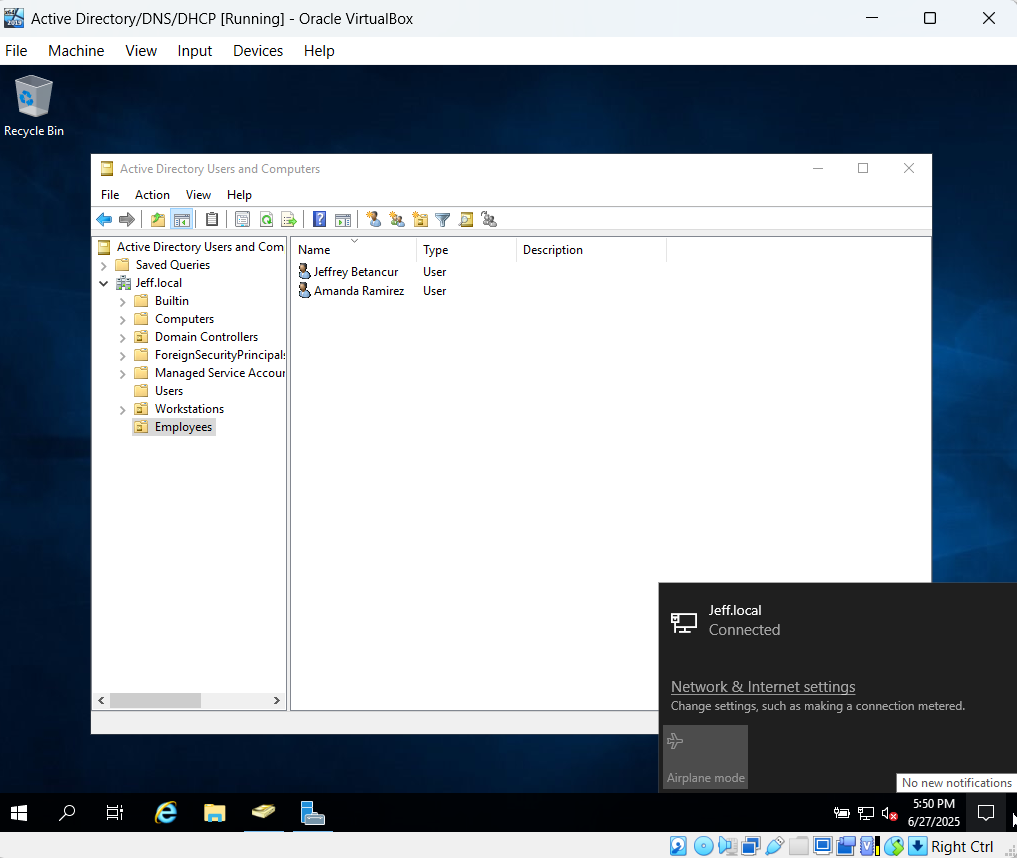

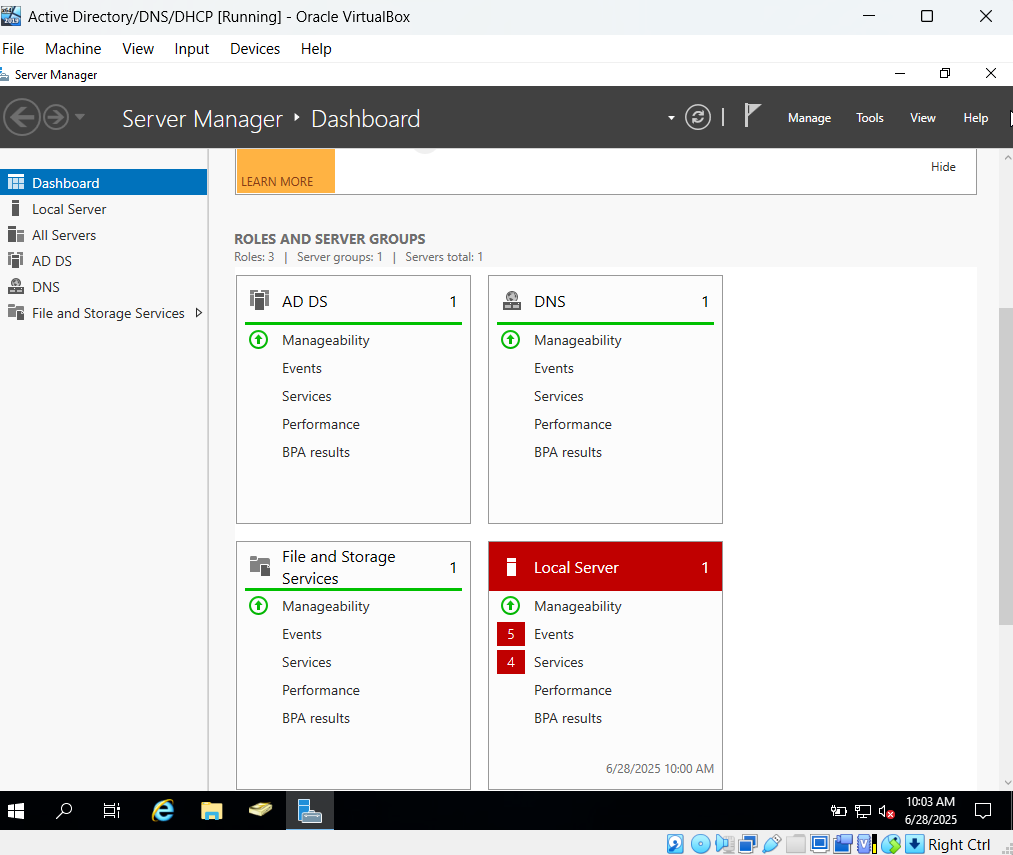

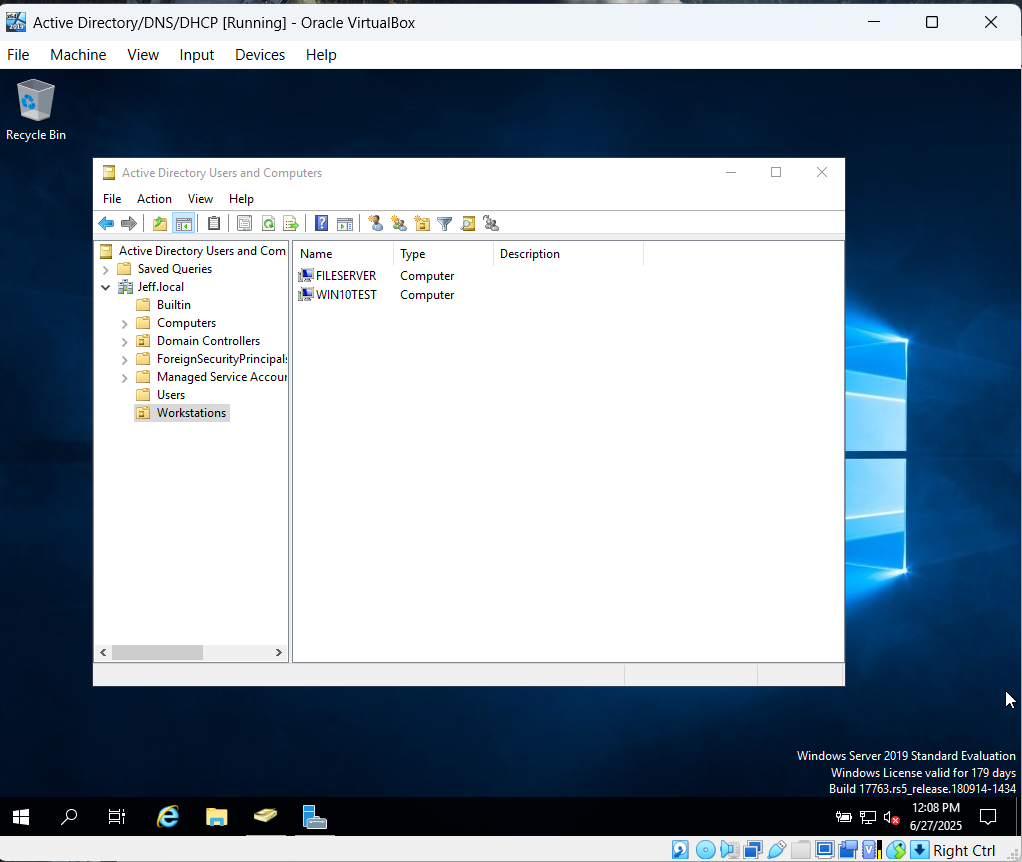

Active Directory VM handles domain authentication, DNS, and centralized user management in the lab.

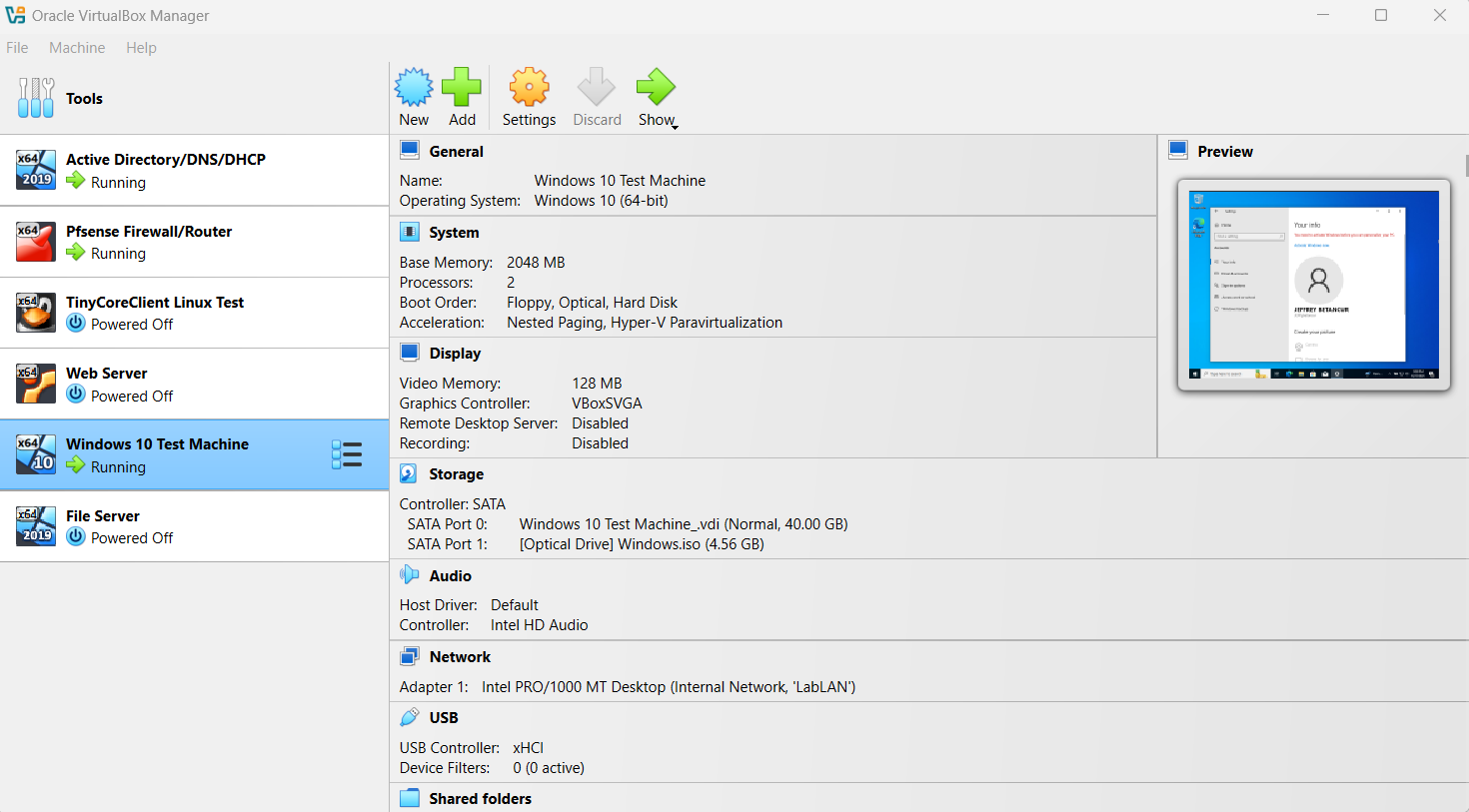

VM Resource Allocation
| VM Name | OS / Role | RAM (GB) | Storage (GB) |
|---|---|---|---|

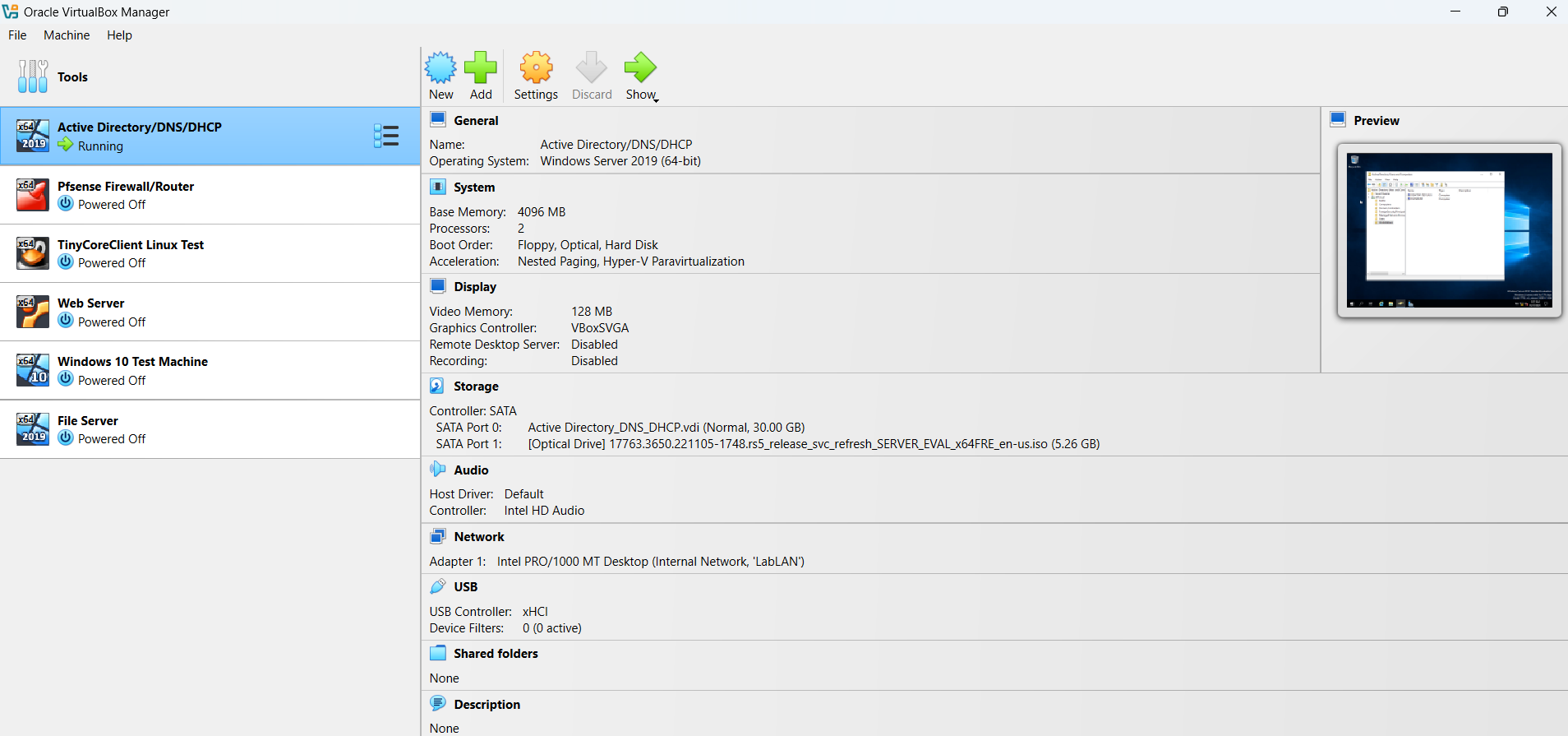

| Active Directory DC | Windows Server 2019 AD/DNS | 4 | 60 |

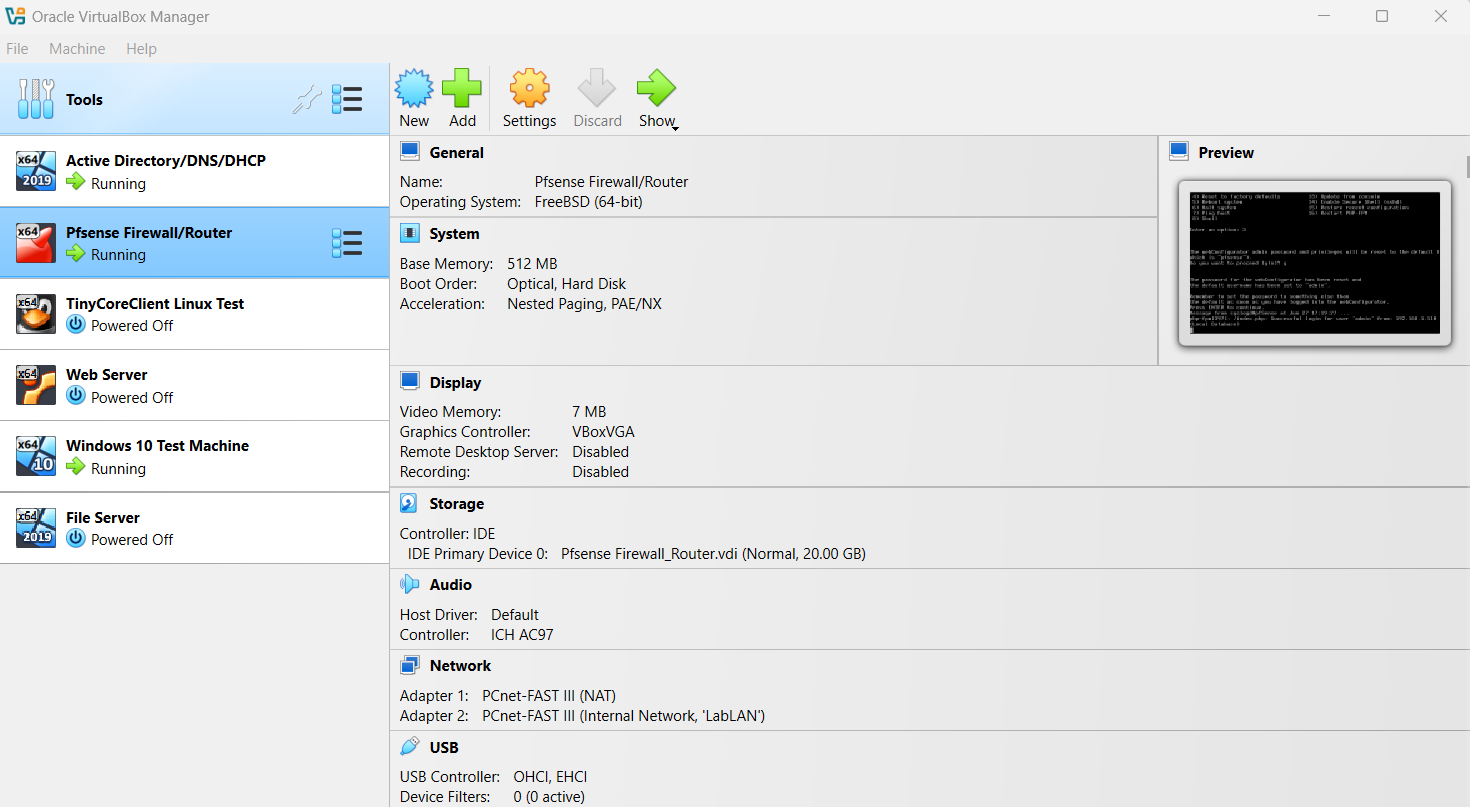

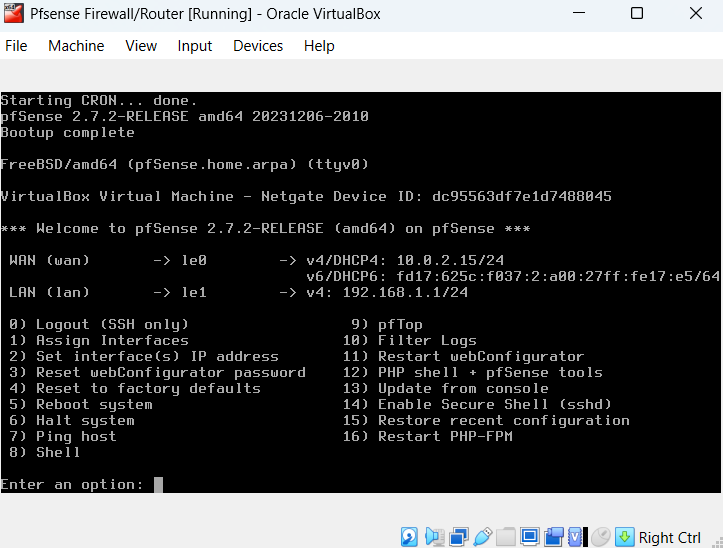

| pfSense | Virtual firewall/router | .5 | 10 |

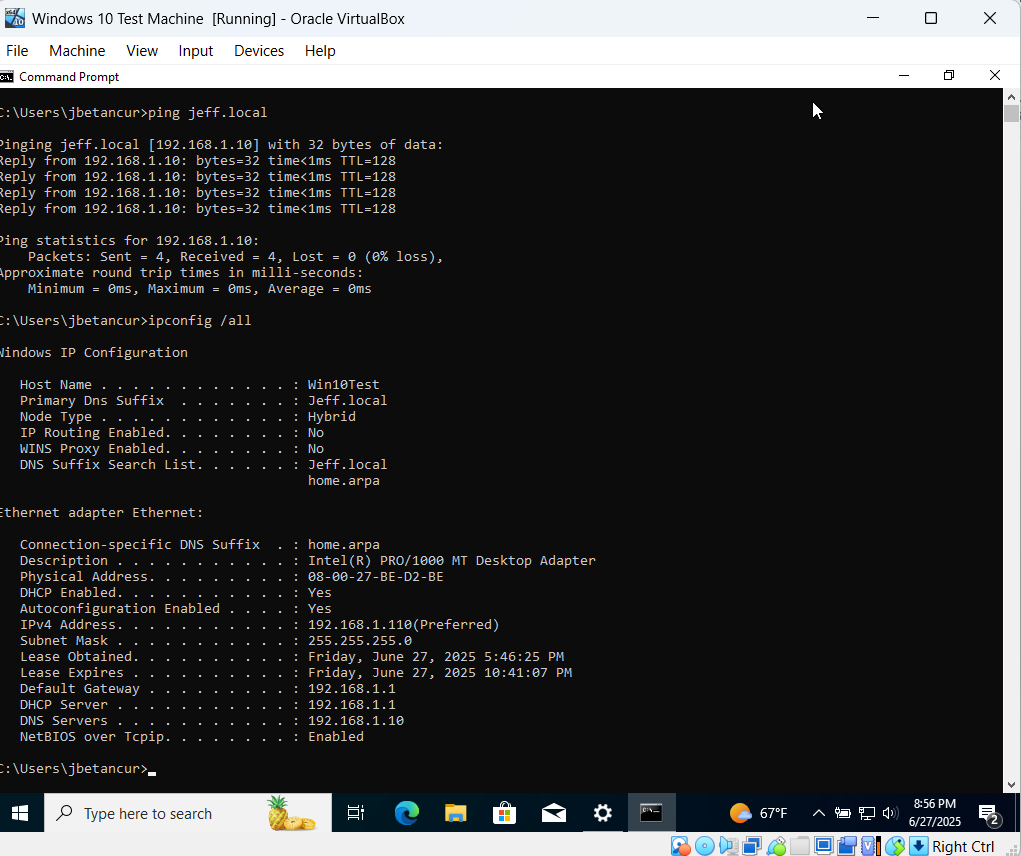

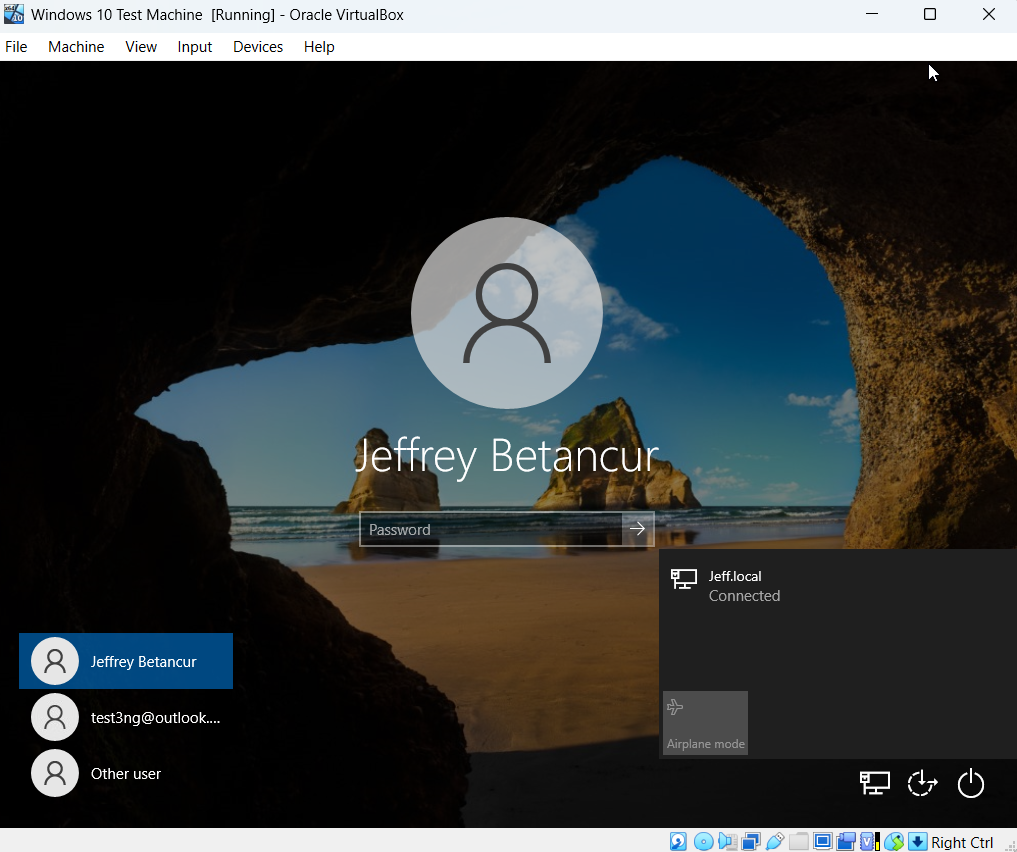

| Windows Client | Windows 10 domain client | 2 | 40 |

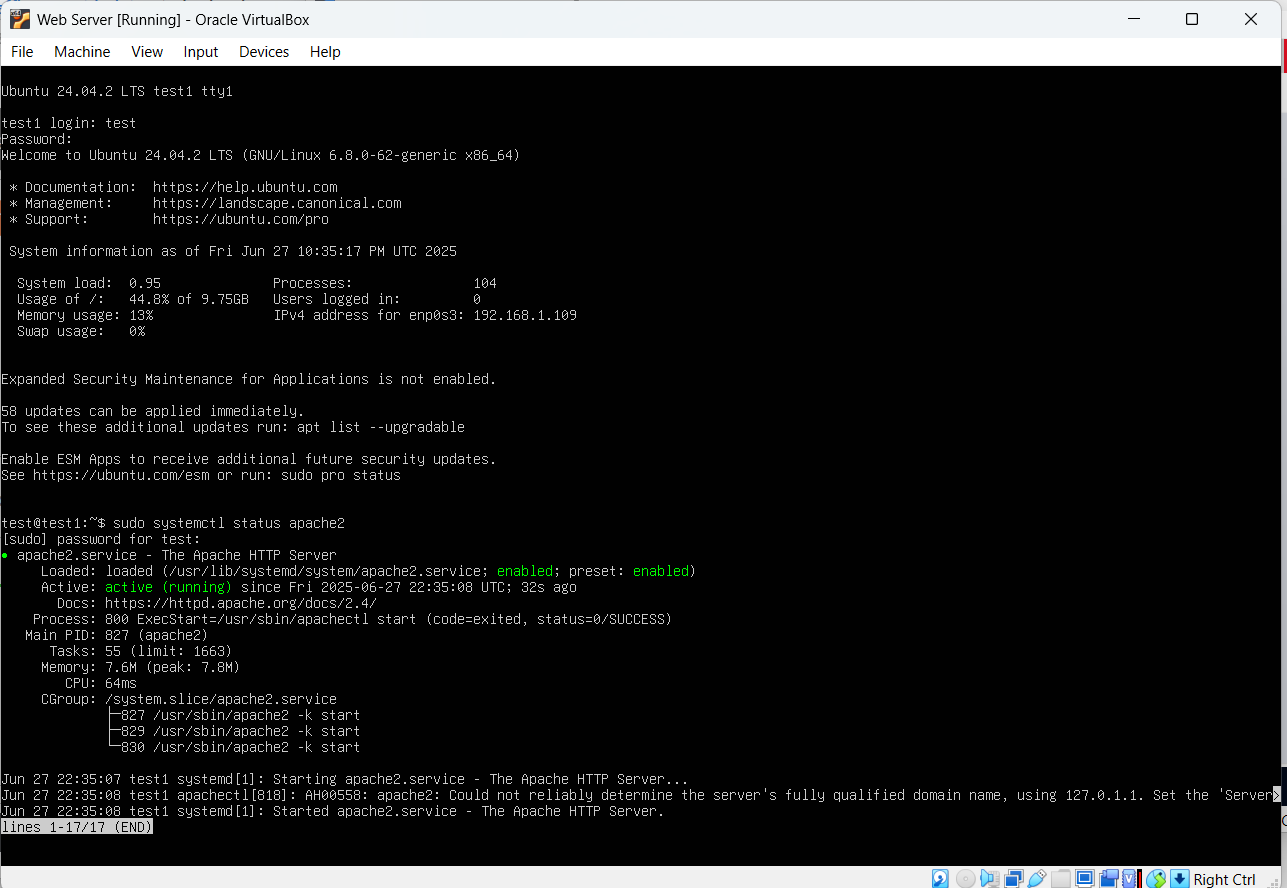

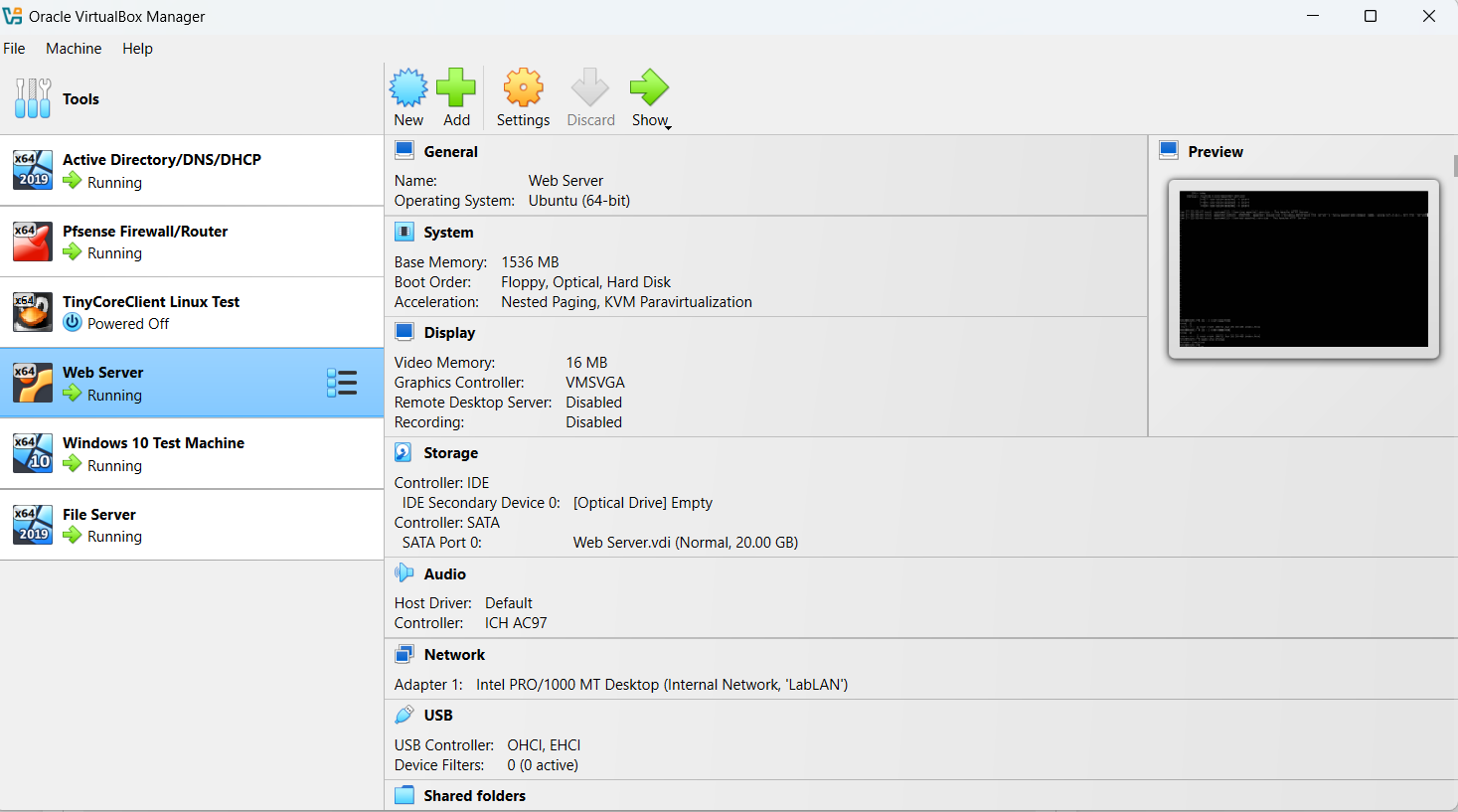

| Apache Web Server | Ubuntu + Apache | 1.5 | 20 |

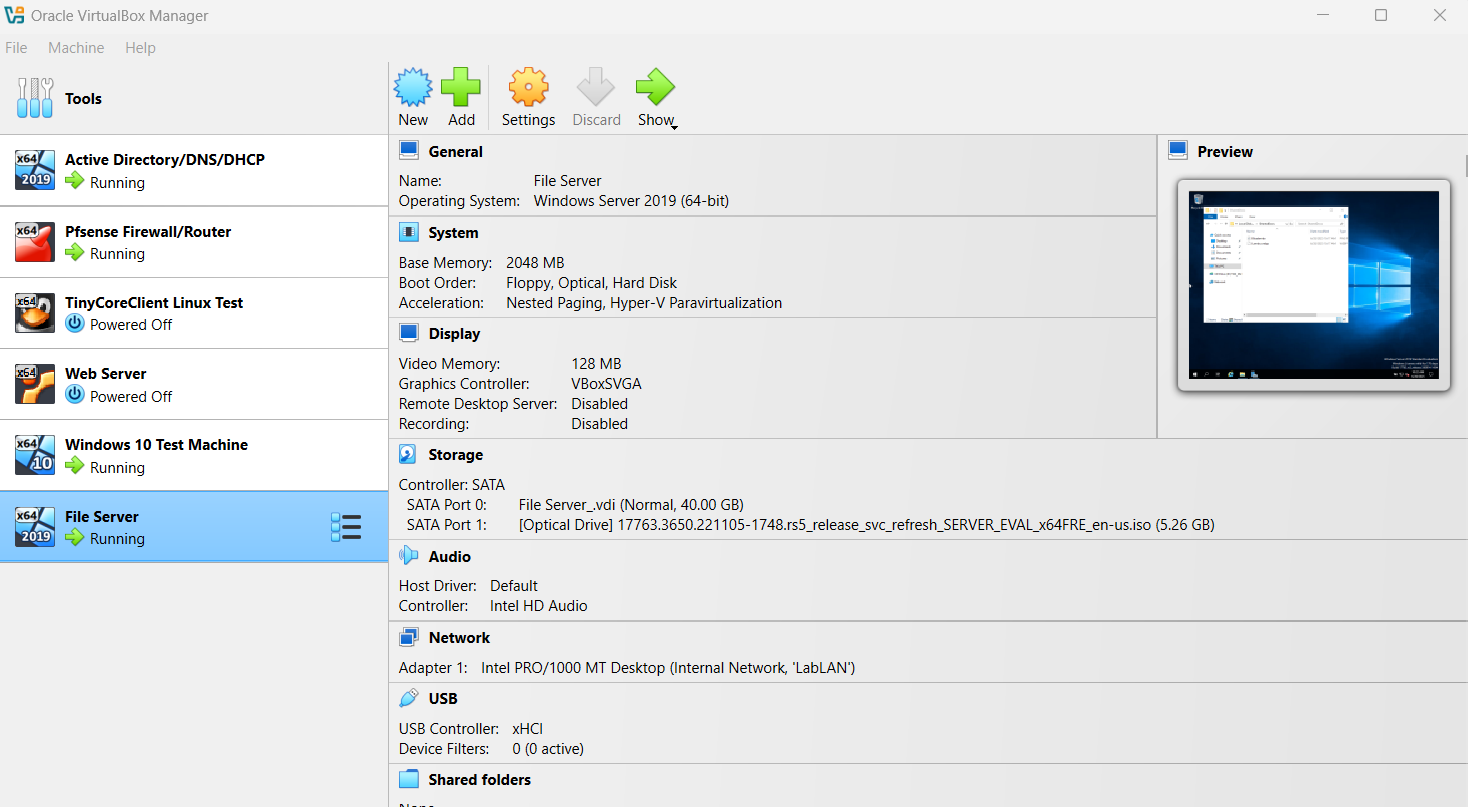

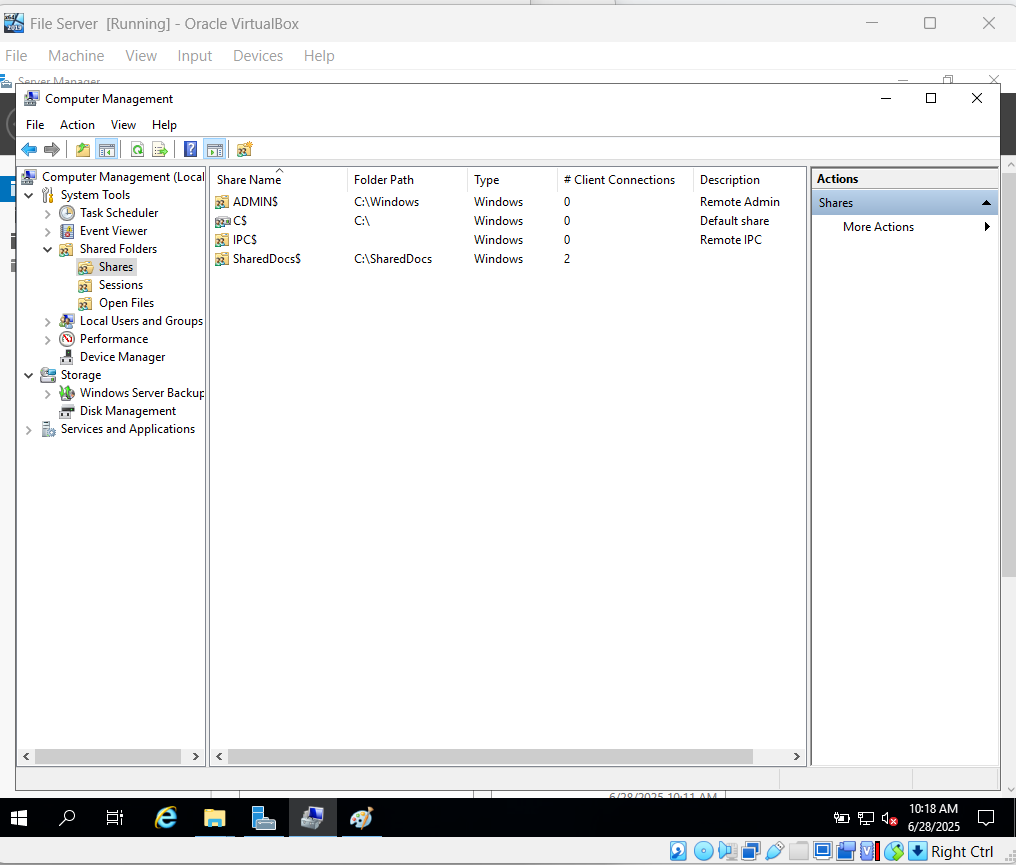

| File Server | Windows Server (SMB Shares) | 2 | 50 |
